RC Curtiss P-6E Hawk plan

Another fabulous design by Canadian aeromodeller Bob Bishop, the Curtiss P-6E Hawk is also for the experienced builder looking for something perhaps a bit different, but very pleasing to the eye!

The full size P-6E was one of several variations of Curtiss Hawk, a fighter biplane developed in the late 1920s. Just 46 P-6Es were produced, serving two squadrons in the early-mid 1930s. Accidents and the lack of overhauls meant that numbers of the plane naturally declined, and now only one survives in the Smithsonian National Air & Space Museum, Washington.

Bob's Curtiss P-6E Hawk design is a giant 1/4 scale model, with a wingspan of 94.5 inches and for a 50cc gas engine.

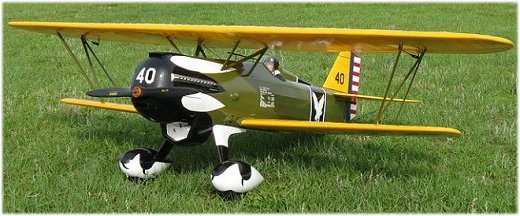

The RC Curtiss P6-E Hawk by Bob Bishop

The basic model specifications are:

  • Scale: 1/4.
  • Wingspan: 94.5 in.(2400mm)
  • Length: 65.7 in. (1669mm)
  • Wing area: 2252 sq.in.
  • Weight: 30 lbs.
  • Wing loading: 30.69 oz/sq.ft.
  • Engine: 50cc gas.
  • Radio: Min. 4 channel.

RC P-6E Hawk plan info

Bob's Hawk is a large 1/4 scale model, its size and bulk emphasized by the fact that it's a biplane. Because of its size there are 9 CAD-created plan sheets, available in printed form or PDF files that you can save to your computer and have printed locally.

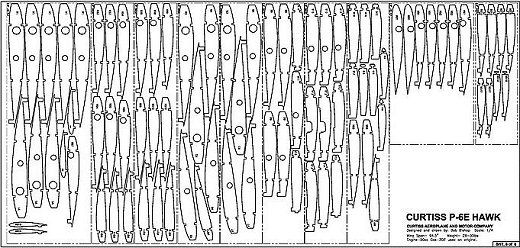

Shown below are a couple of samples of the plan:

RC Curtiss P-6E Hawk plan sample 1 RC Curtiss P-6E Hawk plan sample 2

The P-6E Hawk plan & shipping prices (in USD) are:

  • 9 printed CAD plan sheets: $55.
  • 9 PDF format plan sheets: $25.**
  • Shipping & handling (plans rolled in tube) within the US: $12.50.
  • Shipping & handling (plans rolled in tube) within Canada: $20.00
  • Shipping & handling (plans rolled in tube) overseas: $28.00

** Please note that the PDF files are not an automatic download; they will be sent to you by the designer.

Please use the Paypal button below to order, use the drop-down menu to select your choice:

RC Curtiss P-6E Hawk plans - $55 plus shipping.



Please select an option:

Safe, secure payment through PayPal.
Ordering concerns or problems using the above button? Contact me.



P-6E laser cut parts set.

There is a set of laser cut parts available for the P-6E Hawk, containing all the balsa and ply parts from the plan (formers, ribs etc.). The parts set does not include any sheet or strip wood; this must be purchased separately by yourself. Also note there is no hardware included in the pack.
Price for the set is $250.00 plus shipping costs. Use the Paypal button below to order the set:

RC Curtiss P-6E Hawk laser cut parts set - $250 plus shipping.



Please select your option:

Safe, secure payment through PayPal.
Ordering concerns or problems using the above button? Contact me.

RC Curtiss P-6E Hawk images

Below are several pictures of Bob's fantastic Hawk - click an image for the larger version:

RC P-6E Hawk at the field, pre-maidenThe P-6E Hawk landing
The Hawk on the benchCowl and exhaust detail of Bobs rc Curtiss P-6E Hawk

If you'd like to order the plans (and laser cut parts set) for this RC Curtiss P-6E Hawk, please use the Paypal buttons back up the page.
