E-flite Blade mCX Review

The Blade mCX ('micro CX') comes from E-flite, and brings the well known Blade CX name into the 'must have' category once again!

E-flite Blade mCX

The helicopter is a coaxial rc helicopter, also called contra-rotating or dual rotor. E-flite are no strangers to RTF coaxial rc helicopters, they've seen enormous success with their Blade CX2, the first RTF rc aircraft to be sold with the 2.4GHz spread spectrum based rc technology, now commonplace of course.

The obvious difference with the Blade mCX is its size.
As the photo shows, this helicopter can sit comfortably on the palm of your hand, has a rotor span of just 7.5 inches and weighs in at a mere 1oz (28g).

It's no surprise that E-flite have developed an RTF electric rc helicopter of this micro size; electronic components for radio control aircraft have been getting smaller and smaller over the years and that's been great news for the hobby.

A fully controllable rc helicopter that could be flown safely around the home was just a dream when I was a kid, but the massive global electronic revolution and the popularity of the rc hobby has made micro rc helicopters a reality.

The Blade mCX electronicsSuch tiny electronics are commonplace in radio control aircraft these days and the mCX boasts a 5 in 1 control unit that holds the Spektrum 2.4GHz DSM2 compatible receiver, twin motor electronic speed controls, mixer, gyro and fully proportional servo motors coupled to feedback potentiometers.

In fact, these innovative little components were developed and used in ParkZone's Ember and Vapor ultra light rc airplanes. They do away with the need for bulky and heavy servo casings and work like any proportional servo. Impressive!

Twin micro coreless motors power the two main rotors and the tiny 110mAh Li-Po battery pack gives adequate flight times. The battery is marginally smaller than a Flash memory stick and is charged with the supplied charger, powered by 4 'AA' size batteries.

As with all coaxial rc helicopters, the E-flite Blade mCX is inherently very stable, much more so than a conventional single rotor helicopter. Each main rotor spins in the opposite direction to the other thus cancelling out the natural torque that necessitates a tail rotor on a conventional helicopter.
Because there is no tail rotor on a coaxial rc helicopter, yaw is controlled by adjusting the speed of the main rotors. By making them turn at different speeds relative to each other, torque is purposely introduced thus turning the helicopter in the desired direction.

In fact the Blade mCX's stability is unprecedented in rc helicopters, as this video demonstrates...

As you can see, the helicopter is stable enough to hover without any input at the transmitter.

Something very unusual that E-flite offer is the option to upgrade your little mCX to a glow in the dark version...

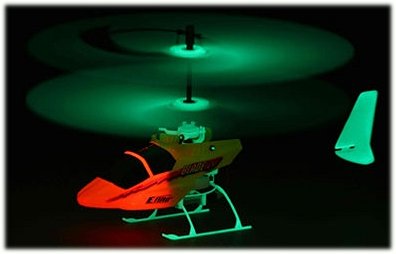

Glow in the dark Blade mCX!

This is possible with the necessary replacement parts that have been coated in a luminous paint, and is a cool feature that's sure to help it sell well.

E-flite Blade mCX in Photos

Below are some detail photos of the helicopter, click any image to view it larger:

Inside the mCX
Inside the mCX
Tiny PCB
Circuit board
Rear of the board
Rear of the board
Feedback potentiometer
Feedback potentiometer
Twin motors
Twin main motors
Main drive gear
Main drive gear
Swashplate
Swashplate
Rotor head of the mCX
Rotor head
Battery charger
Battery charger
Flight battery
Flight battery next to an AA

Other Blade mCX features & specs include:

  • 100% factory assembled, test flown and fully RTF.
  • 4 channel 2.4GHz Spektrum radio, with digital trims and dual rates.
  • Length: 7.9".
  • Main Rotor Diameter: 7.5".
  • Battery: 1S 3.7V 110mAh Li-Po.
  • 'Desk top' Li-Po charger included.

Overall the Blade mCX is a very impressive little micro helicopter with very friendly flight characteristics. Easily flown around the home, I'd recommend one to any rc pilot regardless of experience levels. Even for the veteran flyer, it's a great fun way of getting in some stick time!
